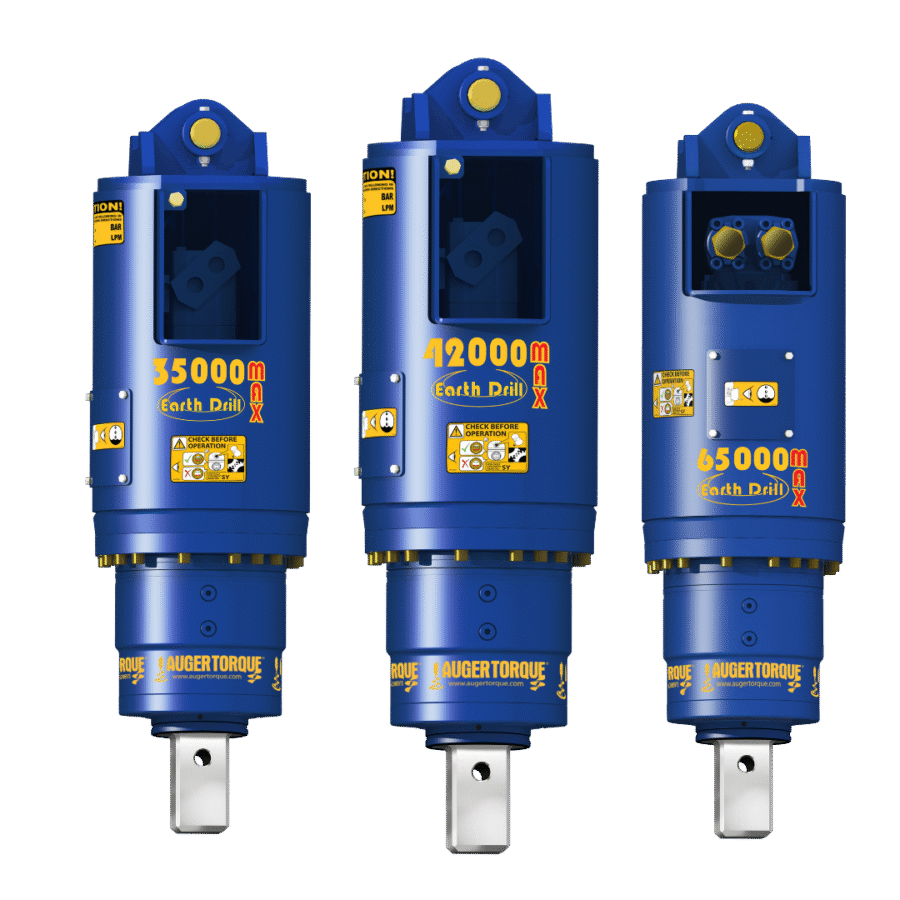

Earth Drills For Excavators 20T–45T (Up to 66589Nm)
The Earth Drill 35,000 MAX, 42,000 MAX and 65,000 MAX are the perfect choice for excavators between 20T- 45T.
-
Equipped with high-quality hydraulic motors for reliable performance.
-
Features output shaft bearings 50% larger than competitors for extended service life.
-
Constructed using high-grade materials and advanced manufacturing techniques.
-
Optional 2-Way Valve allows conversion from single acting to 2-way auxiliary flow.
-
Optional Pressure Relief Valve protects the hydraulic motor from backpressure and pressure spikes.
-
Supplied with high-quality hydraulic hoses as standard.
-
Hydraulic quick couplers not included—direct plumbing recommended to prevent flow restriction and maintain optimal performance.
Earth Drills For Excavators 20T–45T (Up to 66589Nm)
The Earth Drill 35,000 MAX, 42,000 MAX and 65,000 MAX are the perfect choice for excavators between 20T- 45T.
-
Equipped with high-quality hydraulic motors for reliable performance.
-
Features output shaft bearings 50% larger than competitors for extended service life.
-
Constructed using high-grade materials and advanced manufacturing techniques.
-
Optional 2-Way Valve allows conversion from single acting to 2-way auxiliary flow.
-
Optional Pressure Relief Valve protects the hydraulic motor from backpressure and pressure spikes.
-
Supplied with high-quality hydraulic hoses as standard.
-
Hydraulic quick couplers not included—direct plumbing recommended to prevent flow restriction and maintain optimal performance.
You may also like…
-
Earth Drills For Excavators 750kg–3T (Up to 2847Nm)
View Product -
Earth Drills For Excavators 2T–5T (Up to 4499Nm)
View Product -
Earth Drills For Excavators 4.5T–8T (Up to 8152Nm)
View Product -
Earth Drills For Excavators 8T–15T (Up to 15071Nm)
View Product -
Earth Drills For Excavators 12T–22T (Up to 24755Nm)
View Product -
Earth Drills For Excavators 21T–45T (Up to 80898Nm)
View Product -
Earth Drills For Excavators 21T–50T (Up to 152319Nm)
View Product -
Earth Drills For Mini Loaders (Up to 2847Nm)
View Product -
Earth Drills For Skid Steer Loaders Up to 80HP (Up to 4499Nm)
View Product -
Earth Drills For High Flow Skid Steer Loaders & Telehandlers (Up to 8152Nm)
View Product -
Earth Drills For Backhoes (Up to 1507Nm)
View Product -
Earth Drills For Truck Cranes (Up to 6819Nm)
View Product -
Earth Drill Range: Hitches and Frames
View Product
-
SPECIFICATIONS
MODEL 35000 MAX 42000 MAX 65000 MAX Carrier Weight 20-45t 20-45t 21-45t Oil Pressure Range 180 - 310 Bar 180 - 310 Bar 160 - 320 Bar Torque Range 20510 - 35323 Nm 24612 - 42387 Nm 33295 - 66589 Nm Oil Flow Range 80 - 225 lpm * 80 - 225 lpm * 100 - 280 lpm * Speed Range 11 - 31 rpm 9 - 26 rpm 8 - 21 rpm Hub Options 110mm Square 110mm Square 110mm Square Height 1411 mm 1411 mm 1556 mm Width 406 mm 406 mm 406 mm Weight 442kg 442kg 480kg Hitch Options Single Pin Hitch
Double Pin Cradle HitchSingle Pin Hitch
Double Pin Cradle HitchSingle Pin Hitch
Double Pin Cradle HitchAuger Range PA PA PA Rec. Drilling Diameter Range 300 - 1500 mm 300 - 1800 mm 300 - 2400 mm * Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
-
