Earth Drills For Backhoes (Up to 1507Nm)

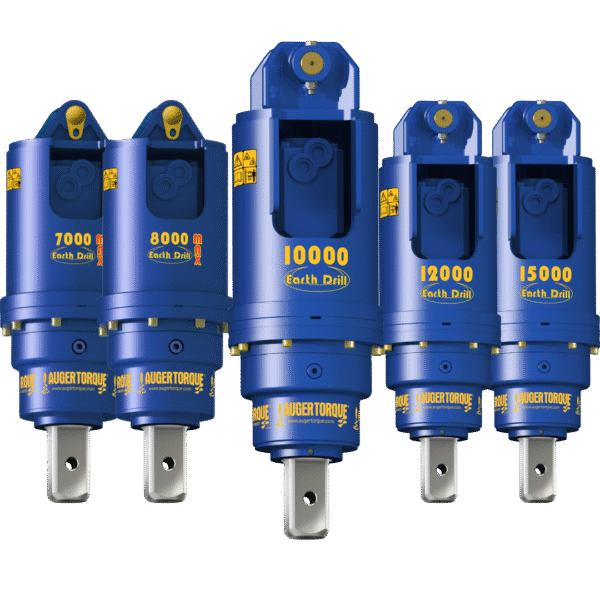

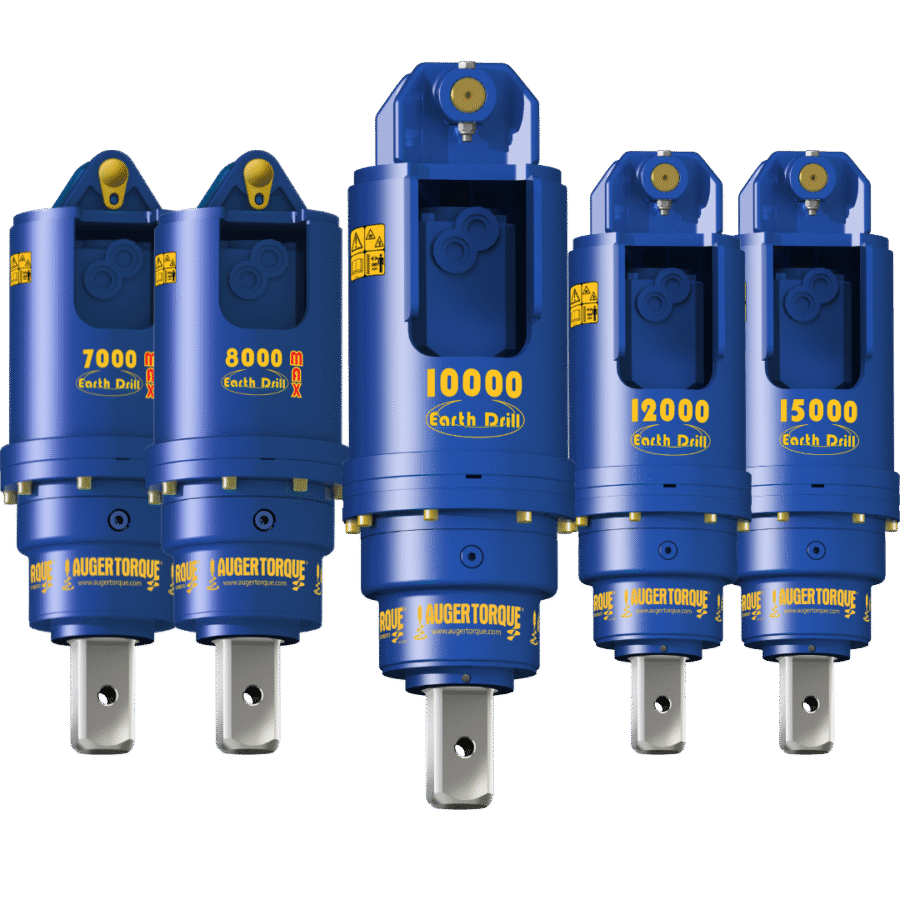

The Earth Drill 7000 MAX to 15,000 MAX’s are the perfect choice for backhoes.

  • Designed specifically for backhoes to deliver reliable performance and efficiency

  • Versatile attachment compatibility allows quick changes for different tasks

  • High-quality hydraulic motors ensure consistent power and durability

  • Output shaft bearings are 50% larger than those in comparable competitor drives

  • Built with premium materials and cutting-edge manufacturing techniques

  • Engineered for a long, dependable service life with minimal maintenance

SKU: N/A Category:
Helper Text Need help choosing the correct model. See the specifications section below for more information.

Earth Drills For Backhoes (Up to 1507Nm)

Earth Drills For Backhoes (Up to 1507Nm)

Earth Drills For Backhoes (Up to 1507Nm)

The Earth Drill 7000 MAX to 15,000 MAX’s are the perfect choice for backhoes.

  • Designed specifically for backhoes to deliver reliable performance and efficiency

  • Versatile attachment compatibility allows quick changes for different tasks

  • High-quality hydraulic motors ensure consistent power and durability

  • Output shaft bearings are 50% larger than those in comparable competitor drives

  • Built with premium materials and cutting-edge manufacturing techniques

  • Engineered for a long, dependable service life with minimal maintenance

SKU: N/A Category:

You may also like…

  • SPECIFICATIONS

    MODEL7000 MAX8000 MAX100001200015000
    Carrier Weight
    Excavator
    Skidsteer
    Backhoe
    Telehandler
    Truck Crane
    5-7t
    135lpm/36gpm
    -
    5-8t
    -
    6-8t
    150lpm/40gpm
    -
    -
    -
    -
    -
    -
    -
    -    		8-13t10-15t
    Oil Pressure Range80 - 260 Bar80 - 260 Bar80 - 260 Bar80 - 240 Bar80 - 240 Bar
    Torque Range2133 - 6931 Nm2717 - 8152 Nm3281 - 10662 Nm4203 - 12610 Nm5024 - 15071 Nm
    Oil Flow Range60 - 135 lpm70 - 150 lpm70 - 150 lpm70 - 150 lpm70 - 150 lpm
    Speed Range36 - 81 rpm33 - 70 rpm27 - 58 rpm21 - 45 rpm18 - 38 rpm
    Hub Options75mm Square75mm Square75mm Square75mm Square75mm Square
    Height780 mm780 mm883 mm883 mm883 mm
    Width269 mm269 mm290 mm290 mm290 mm
    Weight112kg116kg162kg162kg162kg
    Hitch OptionsSingle Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Auger RangeS5S5S6S6S6
    Rec. Drilling Diameter Range150 - 900 mm 150 - 1200 mm 150 - 900 mm150 - 1000 mm 150 - 1200 mm
