Earth Drills For Excavators 12T–22T (Up to 24755Nm)

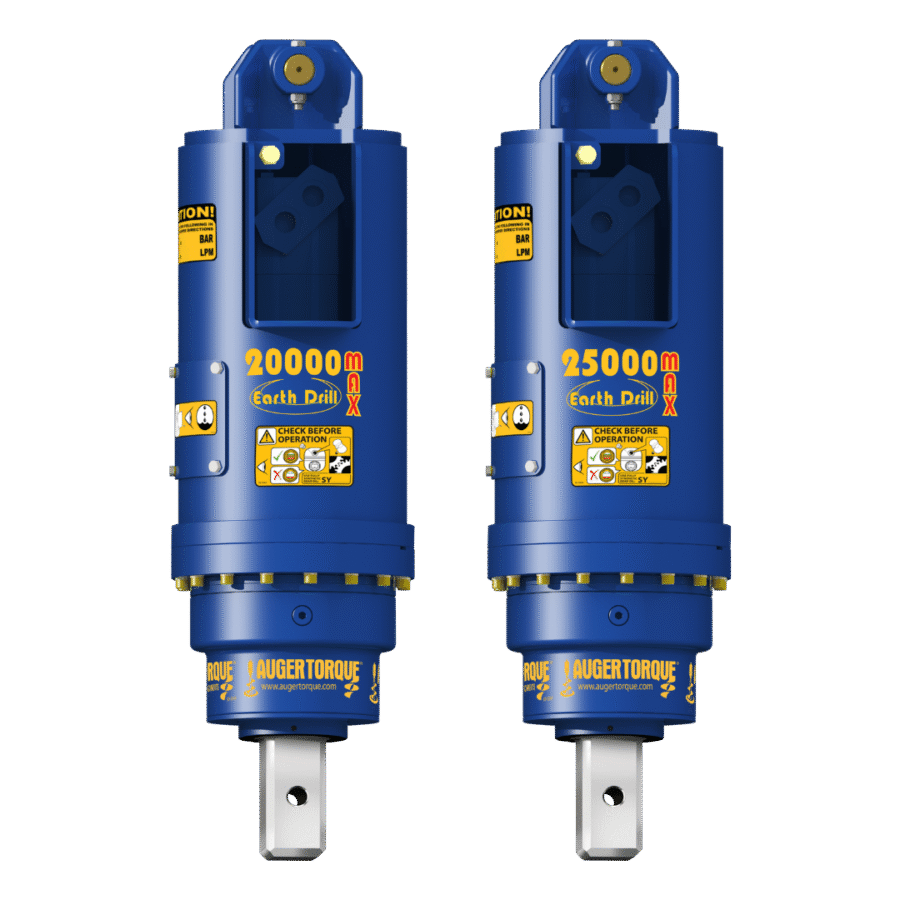

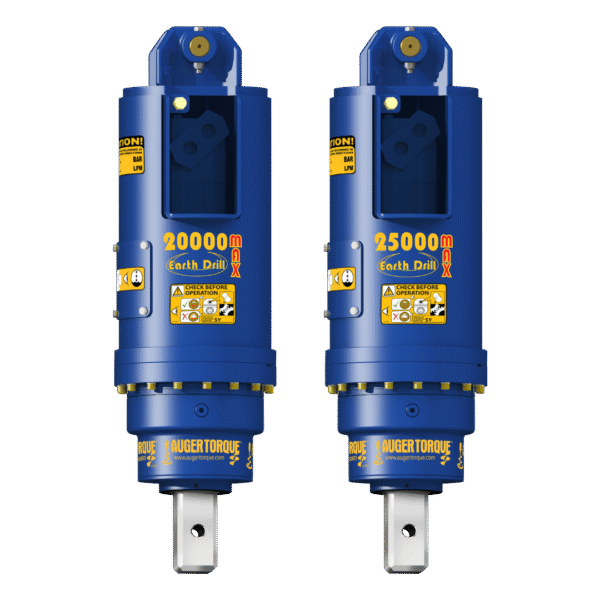

The Earth Drills 20,000 MAX and 25,000 MAX are the perfect choice for excavators between 12T-22T.

  • Built for durability, performance, and long-term reliability.

  • Delivers the versatility, peace of mind, and quality associated with Auger Torque.

  • Optional 2-Way Valve allows conversion from single acting to 2-way auxiliary flow.

  • Optional Pressure Relief Valve protects the hydraulic motor from backpressure and pressure spikes.

  • Supplied with high-quality hydraulic hoses for reliable operation.

  • Hydraulic quick couplers not included—direct plumbing recommended for optimal flow and performance.

  • Ideal for high-torque anchor applications and suitable for both large and smaller machines.

SKU: N/A Category:
Helper Text Need help choosing the correct model. See the specifications section below for more information.

Earth Drills For Excavators 12T–22T (Up to 24755Nm)

Earth Drills For Excavators 12T–22T (Up to 24755Nm)

Earth Drills For Excavators 12T–22T (Up to 24755Nm)

The Earth Drills 20,000 MAX and 25,000 MAX are the perfect choice for excavators between 12T-22T.

  • Built for durability, performance, and long-term reliability.

  • Delivers the versatility, peace of mind, and quality associated with Auger Torque.

  • Optional 2-Way Valve allows conversion from single acting to 2-way auxiliary flow.

  • Optional Pressure Relief Valve protects the hydraulic motor from backpressure and pressure spikes.

  • Supplied with high-quality hydraulic hoses for reliable operation.

  • Hydraulic quick couplers not included—direct plumbing recommended for optimal flow and performance.

  • Ideal for high-torque anchor applications and suitable for both large and smaller machines.

SKU: N/A Category:

You may also like…

  • SPECIFICATIONS

    MODEL20000 MAX25000 MAX
    Carrier Weight13-20t15-22t
    Oil Pressure Range160 - 240 Bar160 - 240 Bar
    Torque Range13043 - 19564 Nm16503 - 24755 Nm
    Oil Flow Range80 - 170 lpm * 80 - 170 lpm *
    Speed Range16 - 33 rpm12 - 26 rpm
    Hub Options75mm Square75mm Square
    Height1130 mm1130 mm
    Width345 mm345 mm
    Weight268kg269kg
    Hitch OptionsSingle Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Auger RangeS6S6
    Rec. Drilling Diameter Range150 - 1000 mm 150 - 1500 mm
    * Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
