Earth Drills For Excavators 8T–15T (Up to 15071Nm)

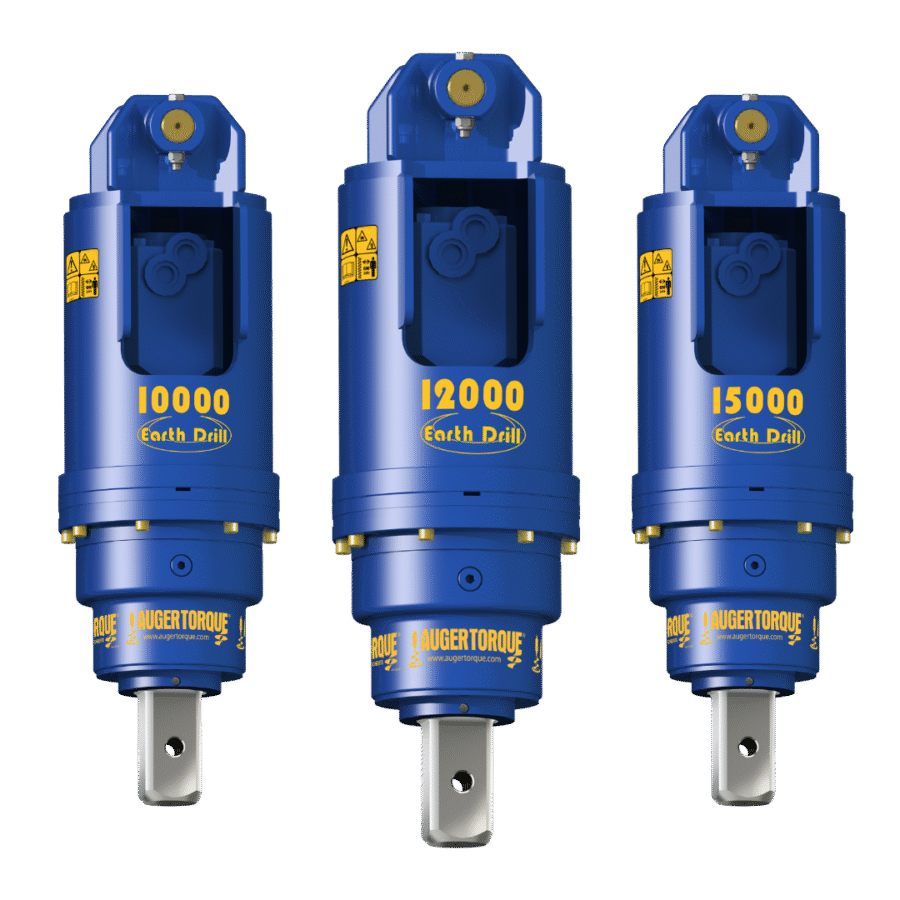

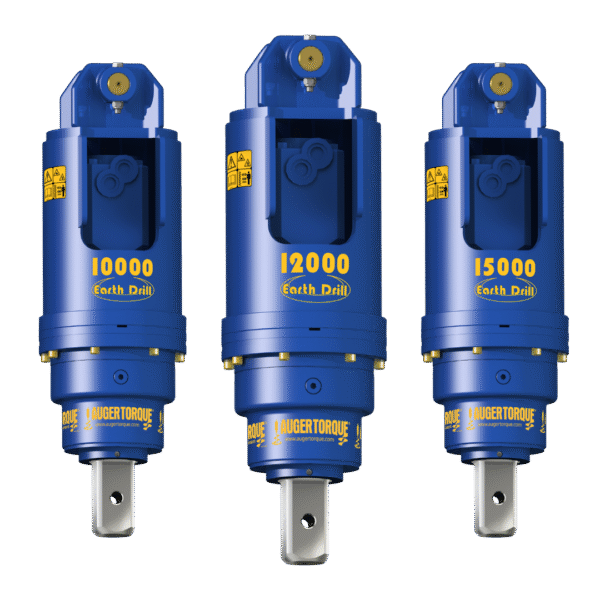

The Earth Drills 10,000 MAX, 12,000 MAX and 15,000 MAX are the perfect choice for excavators between 8T-15T.

  • Engineered for durability, reliability, and long-lasting performance.

  • Delivers the versatility, peace of mind, and quality expected from Auger Torque.

  • Optional 2-Way Valve converts single acting hammer circuits into 2-way auxiliary flow.

  • Optional Pressure Relief Valve available for 12,000 MAX and 15,000 MAX models.

  • Protects the hydraulic motor from backpressure and pressure spikes.

  • Supplied with high-quality hoses and couplers as standard (except 12,000 MAX–15,000 MAX).

  • Coupler type and size must be specified at the time of purchase.

SKU: N/A Category:
Helper Text Need help choosing the correct model. See the specifications section below for more information.

Earth Drills For Excavators 8T–15T (Up to 15071Nm)

Earth Drills For Excavators 8T–15T (Up to 15071Nm)

Earth Drills For Excavators 8T–15T (Up to 15071Nm)

The Earth Drills 10,000 MAX, 12,000 MAX and 15,000 MAX are the perfect choice for excavators between 8T-15T.

  • Engineered for durability, reliability, and long-lasting performance.

  • Delivers the versatility, peace of mind, and quality expected from Auger Torque.

  • Optional 2-Way Valve converts single acting hammer circuits into 2-way auxiliary flow.

  • Optional Pressure Relief Valve available for 12,000 MAX and 15,000 MAX models.

  • Protects the hydraulic motor from backpressure and pressure spikes.

  • Supplied with high-quality hoses and couplers as standard (except 12,000 MAX–15,000 MAX).

  • Coupler type and size must be specified at the time of purchase.

SKU: N/A Category:

You may also like…

  • SPECIFICATIONS

    MODEL1000012000 MAX15000 MAX
    Carrier Weight8-13t10-15t
    Oil Pressure Range80 - 260 Bar80 - 240 Bar80 - 240 Bar
    Torque Range3281 - 10662 Nm3998 - 11995 Nm5024 - 15071 Nm
    Oil Flow Range70 - 150 lpm80 - 170 lpm * 80 - 170 lpm *
    Speed Range27 - 58 rpm25 - 54 rpm20 - 43 rpm
    Hub Options75mm Square75mm Square75mm Square
    Height883 mm930 mm930 mm
    Width290 mm290 mm290 mm
    Weight162kg172kg173kg
    Hitch OptionsSingle Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch    		Single Pin Hitch
    Double Pin Hitch
    Cradle Hitch
    Auger RangeS6S6S6
    Rec. Drilling Diameter Range150 - 900 mm 150 - 1000 mm 150 - 1200 mm
    * Flow rates quoted are continuous, intermittent flow rates up to 225 lpm allowed.
